1. Databases: The Foundation of Structured Data

What Is a Database?

Concept: A database is a blueprint for storing structured data. It is designed to organize, manage, and facilitate efficient retrieval of information.

• An application used to create & manage databases is called DBMS.
• Database is a concept, MySQL, ORACLE, etc., are products
• Collection of meaningful processes that produce some meaningful output is called a system.

DBMS: An application used to create and manage databases is called a Database Management System (DBMS). While the term “database” refers to the concept, products such as MySQL are implementations of that concept.

Real-World Example: Consider a library catalog system. Just as every book is assigned a unique identifier and placed in a specific section, a database organizes data into tables, rows, and columns so that every piece of information can be easily located and referenced.

2. SQL: Structured Query Language

Definition: SQL is a standardized language (certified by ISO/ANSI) used to create, maintain, and manipulate databases. It is supported by all database products.

Categories of SQL

• DDL: Data Definition Language
• DML: Data Manipulation Language
• DCL: Data Control Language
• DQL: Data Query Language
• TCL: Transaction Control Language

Each category serves a specific purpose and includes commands that help users interact with databases effectively. Let’s explore each category in detail.

2.1 DDL (Data Definition Language)

Purpose

Used to create, alter, or destroy the structure of database objects (e.g., tables, views, indexes).

Commands & Examples

• CREATE – Establish new database objects.

  CREATE TABLE Employees (
      EmployeeID INT PRIMARY KEY,
      FirstName VARCHAR(50),
      LastName VARCHAR(50)
  );

• ALTER – Modify the structure; it includes combinations such as:
  • ALTER ADD – Add new columns.

    ALTER TABLE Employees ADD DateOfBirth DATE;

  • ALTER UPDATE – Change existing column definitions.

    ALTER TABLE Employees ALTER COLUMN LastName VARCHAR(100);

  • ALTER DROP – Remove a column.

    ALTER TABLE Employees DROP COLUMN DateOfBirth;

• DROP – Remove entire objects from the database.

  DROP TABLE Employees;

• TRUNCATE – Remove all records from a table while retaining its structure. It can be seen as a combination of DROP and CREATE in that it clears data but preserves the table schema.

  TRUNCATE TABLE Employees;

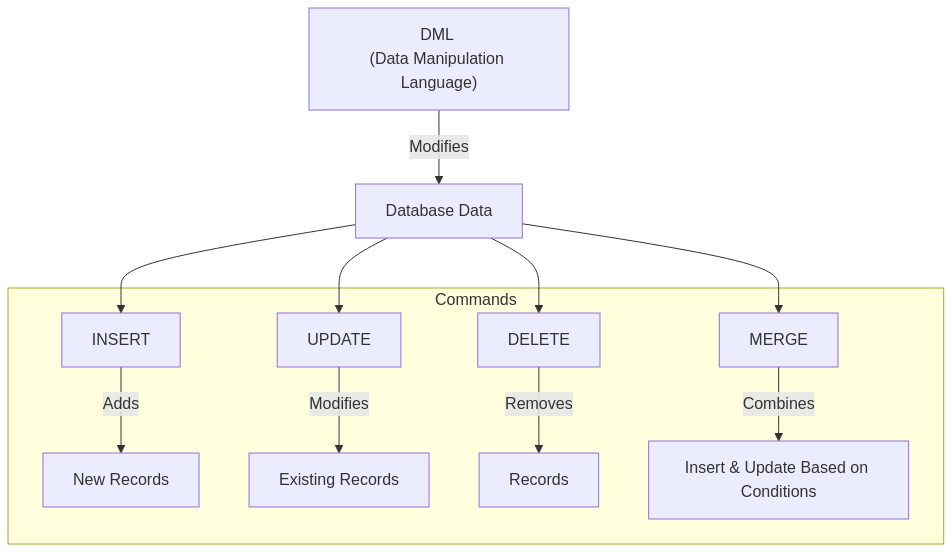

2.2 DML (Data Manipulation Language)

Purpose

Handles transactions and data changes within the database.

Commands & Examples

• INSERT – Add new records.

  INSERT INTO Employees (EmployeeID, FirstName, LastName) VALUES (1, 'John', 'Doe');

• UPDATE – Modify existing records.

  UPDATE Employees SET LastName = 'Smith' WHERE EmployeeID = 1;

• DELETE – Remove records.

  DELETE FROM Employees WHERE EmployeeID = 1;

• MERGE – Combine insertion and updating operations based on specified conditions.

  MERGE INTO Employees AS Target
  USING NewEmployees AS Source
  ON Target.EmployeeID = Source.EmployeeID
  WHEN MATCHED THEN
      UPDATE SET Target.FirstName = Source.FirstName, Target.LastName = Source.LastName
  WHEN NOT MATCHED THEN
      INSERT (EmployeeID, FirstName, LastName)
      VALUES (Source.EmployeeID, Source.FirstName, Source.LastName);

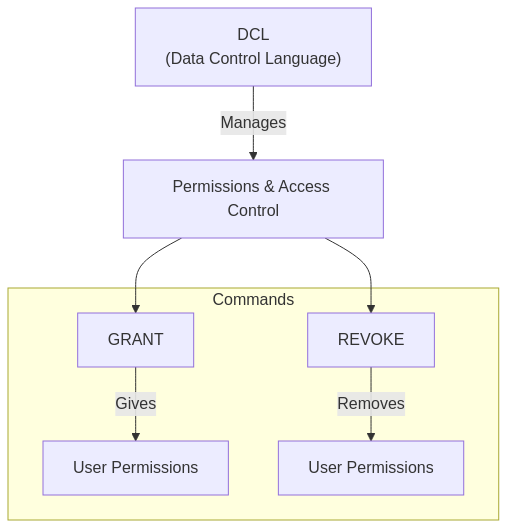

2.3 DCL (Data Control Language)

Purpose

Manages permissions and access controls to data, ensuring that only authorized users can perform certain actions.

Commands & Examples

• GRANT – Gives a user permission to perform certain actions on database objects.

  GRANT SELECT, INSERT ON Employees TO UserA;

• REVOKE – Removes permissions previously granted to a user.

  REVOKE INSERT ON Employees FROM UserA;

  Explanation: This command removes the INSERT permission from UserA for the Employees table.

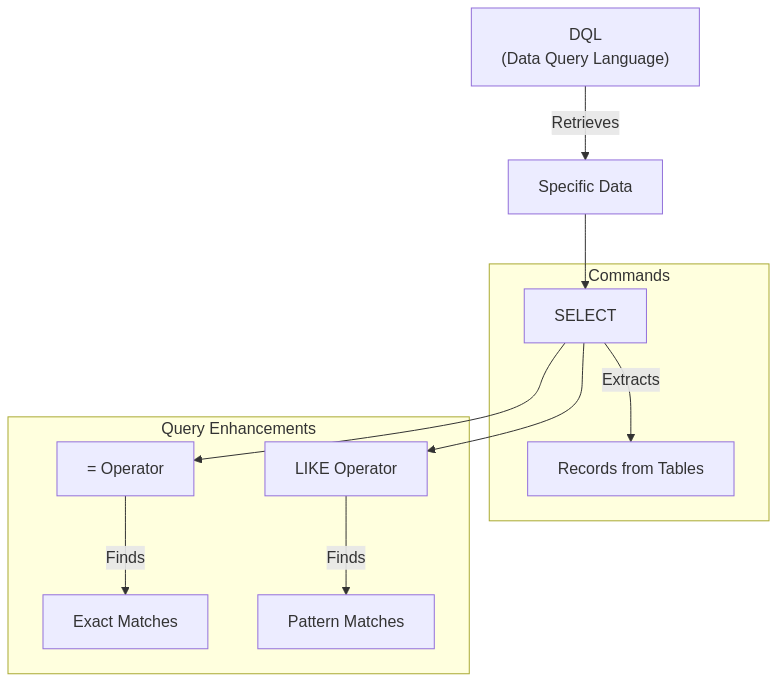

2.4 DQL (Data Query Language)

Purpose

Focuses on querying the data to retrieve specific information.

Commands & Examples

• SELECT – Retrieves data based on specified criteria.

  SELECT * FROM Employees WHERE LastName = 'Smith';

• Enhancements – The = operator is used to fetch rows that exactly match the specified value, while the LIKE operator is used for pattern searching.

  Example: % represents any number of characters and _ represents a single character.

  SELECT * FROM Employees WHERE FirstName LIKE 'Jo%';

  Explanation: This query fetches all employees whose first name starts with "Jo".

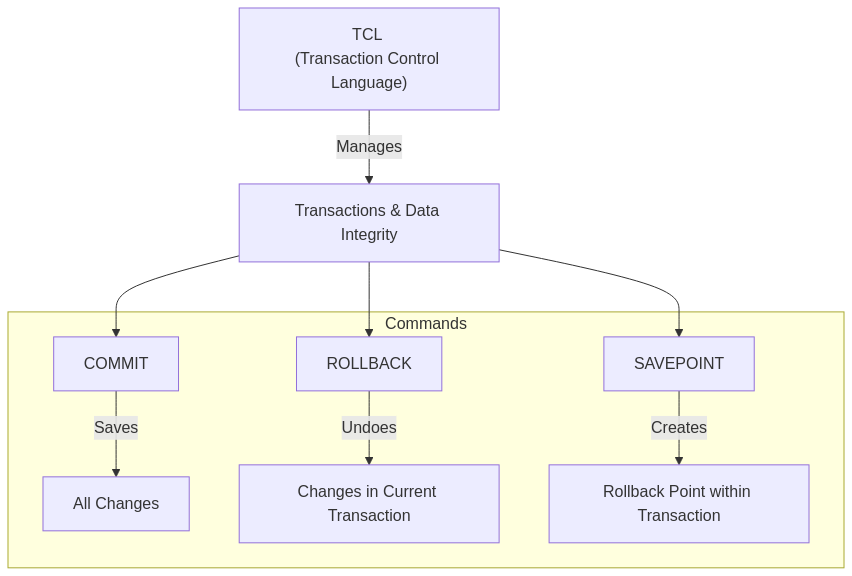

2.5 TCL (Transaction Control Language)

Purpose

Controls and manages transactions to ensure data integrity.

Commands & Examples

• COMMIT – Saves all changes made in the current transaction.

  COMMIT;

• ROLLBACK – Undoes changes made in the current transaction.

  ROLLBACK;

• SAVEPOINT – Sets a point within a transaction to which you can later roll back if needed.

  SAVEPOINT Savepoint1;
  -- Some DML operations here
  ROLLBACK TO Savepoint1;

3. Management Information Systems (MIS) and Decision Support Systems (DSS)

Management Information System (MIS)

Definition:

MIS is a system used primarily by the lower levels of management to capture data from the external environment.

Purpose:

It focuses on routine data entry and operational transactions.

Real-World Scenario:

In a retail store, daily sales and inventory updates are entered into the MIS, enabling store managers to monitor stock levels and sales performance in real time.

Decision Support System (DSS)

Definition:

DSS is used by higher-level management to analyze the data compiled by the MIS and support strategic decision-making.

Purpose:

It transforms raw data into meaningful reports and analyses.

Real-World Scenario:

A CEO may use a DSS to evaluate quarterly performance reports generated from MIS data, helping decide whether to launch new products or adjust business strategies.

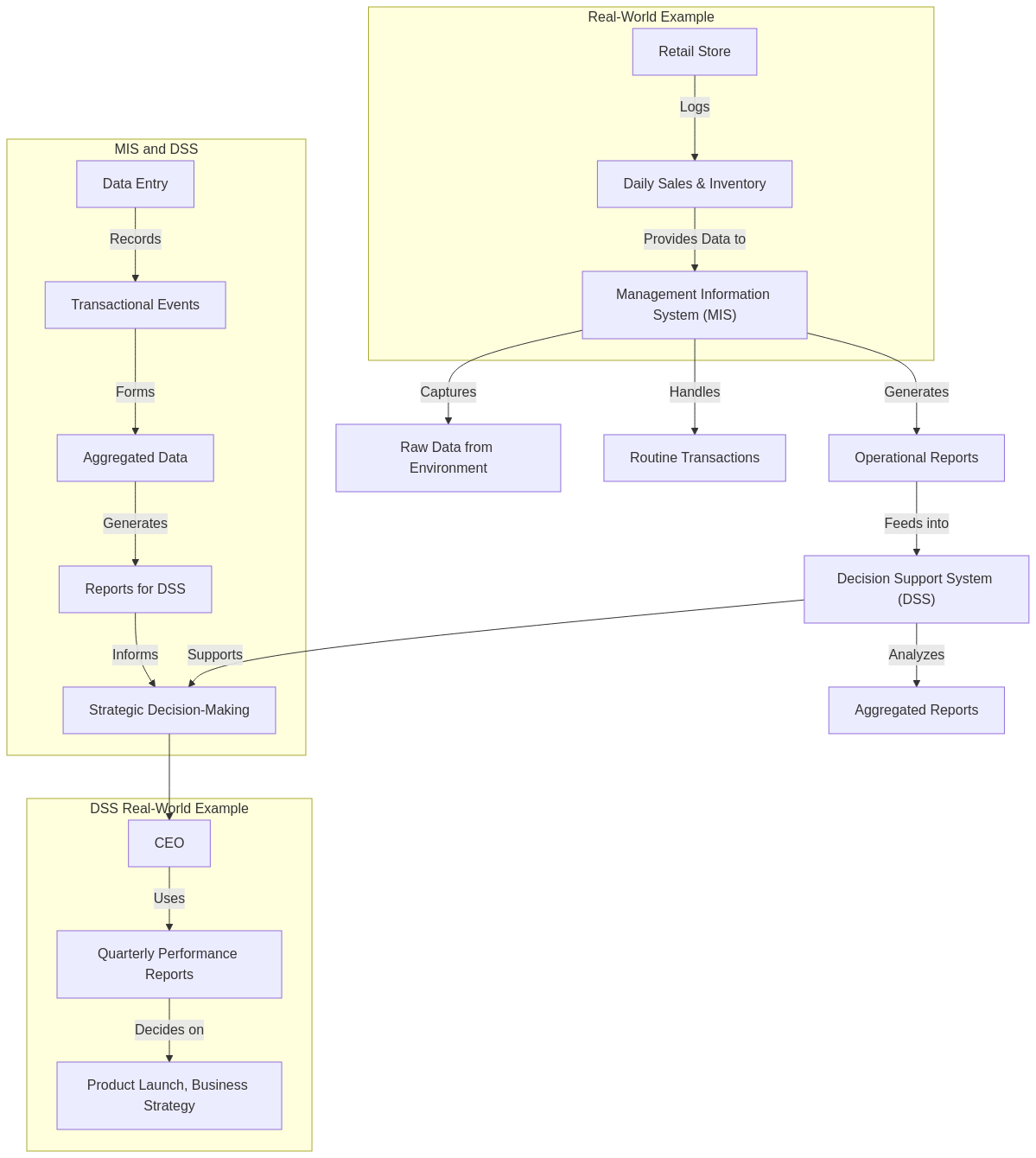

How MIS and DSS Work Together

Process Flow:

1. Data Entry: When an MIS entry is made, it represents the fundamental building block of the data system.
2. Transactions: Every event or operation—such as a sale, update, or deletion—is recorded as a transaction.
3. Data Analysis: Aggregated transactions form the basis for generating reports.
4. Decision Making: These reports feed into the DSS, where data analysis supports high-level decision-making.

Real-World Analogy:

Imagine an assembly line in a factory. The MIS collects each step’s data (like components added), while the DSS uses this data to forecast production trends and determine if adjustments are necessary for efficiency.

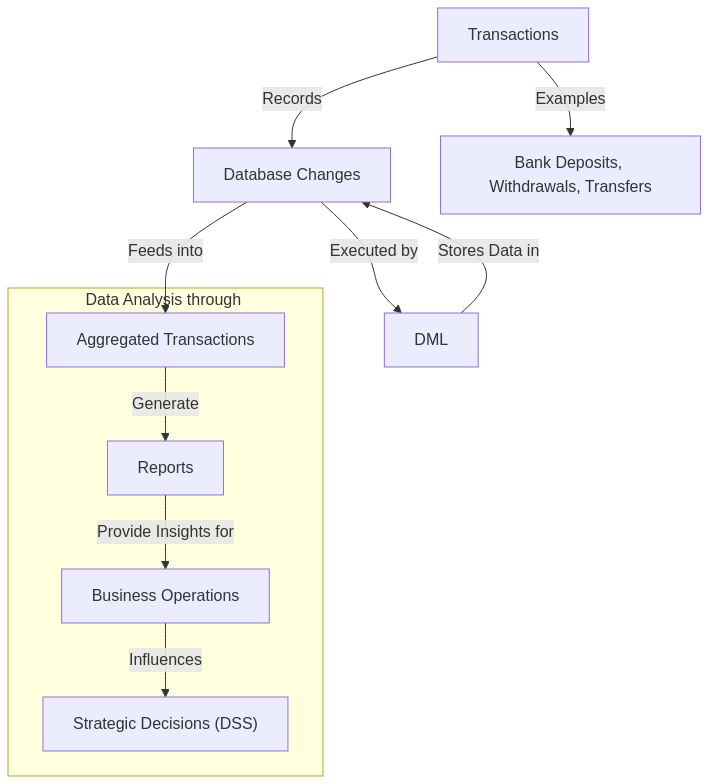

4. Transactions and Data Manipulation

Transactions in a Database

• Definition: Transactions refer to any event or operation that triggers an entry in the database. They are the records of every change made. i.e. Relevant events required to be tracked by a database are transactions.
• Example: In a bank, every deposit, withdrawal, or transfer is recorded as a transaction.
• Key Idea: All commands that change the state of the data—whether they add, update, or remove information—are considered part of transactions.

Data Manipulation Language (DML)

• Definition: DML comprises the commands used to execute transactions and manipulate the data stored within the database.
• Primary Commands:
  • INSERT: To add new records.
  • UPDATE: To modify existing records.
  • DELETE: To remove records.
• Real-World Analogy: Think of DML as the instructions you give to a digital assistant to add a new contact, update an address, or remove an outdated phone number from your phone book.

Data Analysis through Reports

• Process: Data from transactions is aggregated to generate various reports.
• Application: These reports provide critical insights into business operations, influencing strategic decisions made via the DSS.
• Example: A report summarizing daily transactions in a supermarket can reveal peak shopping hours, which in turn influences staffing and inventory management decisions.

5. Client-Server Architecture

Overview of Client-Server Models

Understanding the architecture behind how applications are delivered and executed is essential. Two primary models exist:

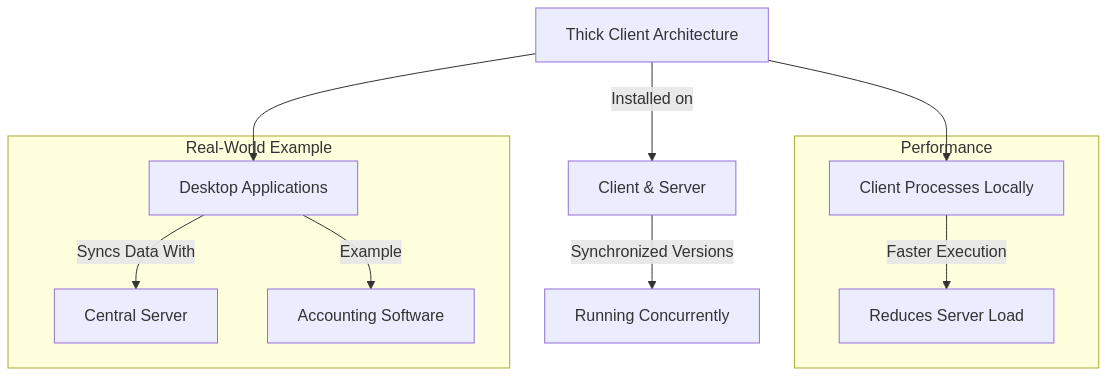

Thick Client Architecture

• Description: Applications are installed on both the client and the server, with two synchronized versions running concurrently.
• Performance: Processes are faster since the client performs part of the processing locally.
• Real-World Example: Desktop applications like accounting software that operate on your computer while synchronizing with a central server for data backup and updates.

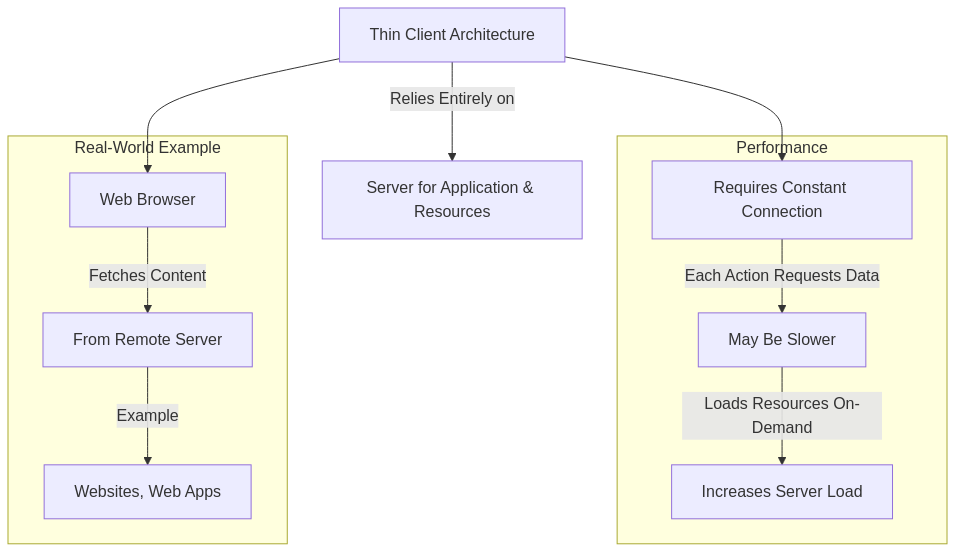

Thin Client Architecture

• Description: The client does not host the application; instead, it relies entirely on the server to deliver the application and its resources.
• Performance: May be slower because each action requires a connection to the server, which retrieves and loads resources on-demand.
• Real-World Example: A website where the browser (client) simply displays content fetched from the server. Every time you click a link, the server sends the necessary information to your device.

6. Ideation, Brainstorming, and Norming: Building the Foundation of Data Integrity

Ideation and Brainstorming

• Definition: These processes involve generating and discussing creative ideas. This stage is crucial for developing innovative solutions and effective strategies.
• Real-World Example: Consider a team meeting where members propose various ideas for a new marketing campaign. All ideas are welcomed and noted for further analysis.

Norming

• Definition: Norming involves setting up rules and guidelines to maintain data integrity and ensure the smooth operation of systems.
• Key Term – Data Integrity Rules: These are the rules that keep the data consistent and reliable across the system.
• Real-World Scenario: Similar to a classroom where rules are set to ensure all students submit assignments on time and in the correct format, norming in databases establishes guidelines that preserve data quality and consistency.

7. Data Integrity Rules

Domain Integrity Rule

• Definition: This rule ensures that the data entered into a system adheres to predefined constraints related to datatype, data size, check conditions, default values, and nullability.
• Example: A field designed to store dates must only accept valid date formats. If a user tries to enter a text string instead, the system rejects it.
• Analogy: Imagine a passport application form that requires specific formats for birth dates and phone numbers. The system only accepts data that fits these predefined criteria.

Entity Integrity Rule

• Definition: This rule ensures that each record in a table is unique by using identifiers such as primary keys and unique constraints.
• Key Points:
  • Primary Key: A unique identifier for each record in a table. Only one primary key is allowed per table.
  • Unique Constraint: Ensures no duplicate data is entered in columns designated as unique.
• Example: A university’s student database might use a student ID as the primary key. No two students can have the same ID.
• Composite Key: When a primary key is based on more than one column, it is known as a composite key. For instance, a combination of "Course ID" and "Student ID" might uniquely identify a student’s enrollment record.

Referential Integrity Rule

• Definition: This rule maintains consistency between related tables by ensuring that a foreign key in one table corresponds to a primary key in another.
• Example: In a customer order system, an order record (child) might reference a customer record (parent). The foreign key in the order table must match an existing primary key in the customer table.
• Analogy: Think of it as a family tree where each child must be correctly linked to their parent, ensuring the relationships are consistent.

Enterprise Integrity Rule

• Definition: These are custom rules defined by an organization to address specific business requirements and ensure overall system security and scalability.
• Example: A retail company might enforce a rule that limits the amount a customer can purchase online without additional verification to prevent fraud.
• Importance: These rules are critical for tailoring the database to fit the unique needs and security requirements of the enterprise.

8. Understanding Keys in Database Systems

Types of Keys and Their Roles

Candidate Keys

• Definition: Keys that have unique values and can potentially be chosen as the primary key.
• Example: In a table of employees, both "Employee ID" and "Social Security Number" could serve as candidate keys because they uniquely identify each employee.

Primary Key

• Definition: A candidate key selected to uniquely identify each record in a table.
• Restriction: Only one primary key is allowed per table.
• Example: Typically, "Employee ID" is chosen as the primary key in an employee database.

Composite Key

• Definition: A primary key that consists of more than one column.
• Example: In a school database, a combination of "Student ID" and "Course ID" might be used to uniquely identify each course enrollment.

Alternate Key

• Definition: Candidate keys that were not chosen as the primary key.
• Example: If "Employee ID" is chosen as the primary key, then "Email Address" might be considered an alternate key if it is also unique for each employee.

Super Key

• Definition: A set of one or more candidate keys that can uniquely identify records.
• Example: A super key might include "Employee ID" combined with other fields like "Department Code"—any such combination that uniquely identifies a record is considered a super key.

9. SQL Clauses: Enhancing the Usability of Commands

This section describes several SQL clauses that refine queries by filtering, grouping, sorting, and limiting results.

SELECT * FROM Employees
WHERE Department = 'Sales';

SELECT Department, COUNT(*)
FROM Employees
GROUP BY Department;

SELECT Department, COUNT(*)
FROM Employees
GROUP BY Department
HAVING COUNT(*) > 5;

SELECT * FROM EMP
ORDER BY SALARY DESC;

SELECT * FROM EMP
ORDER BY 6;

SELECT * FROM EMP
ORDER BY DEPTNO, SAL;

SELECT * FROM EMP
LIMIT 10 OFFSET 5;

Practical Example: Employee Details Query

Problem Statement

Display the details of employees working for department number 10 in ascending order based on their salary.

Step-by-Step Approach

1. Filtering Data:

   Use a WHERE clause to filter employees belonging to department 10.

2. Sorting Data:

   Apply the ORDER BY clause to arrange the filtered results in ascending order by salary.

Query Structure

The correct order of clauses is essential: the filtering (WHERE) comes before the sorting (ORDER BY).

Real-World Analogy

Imagine you are in charge of a team and need to list members of a specific department. First, you identify everyone in that department (filtering) and then arrange them by their performance score (sorting) to see who ranks lowest to highest.

Motivation

Your continuous engagement with these concepts will be essential as you work with databases and data systems in more complex environments. Stay curious and keep exploring the dynamic world of data and systems—every piece of information builds toward your expertise and success in this field.
